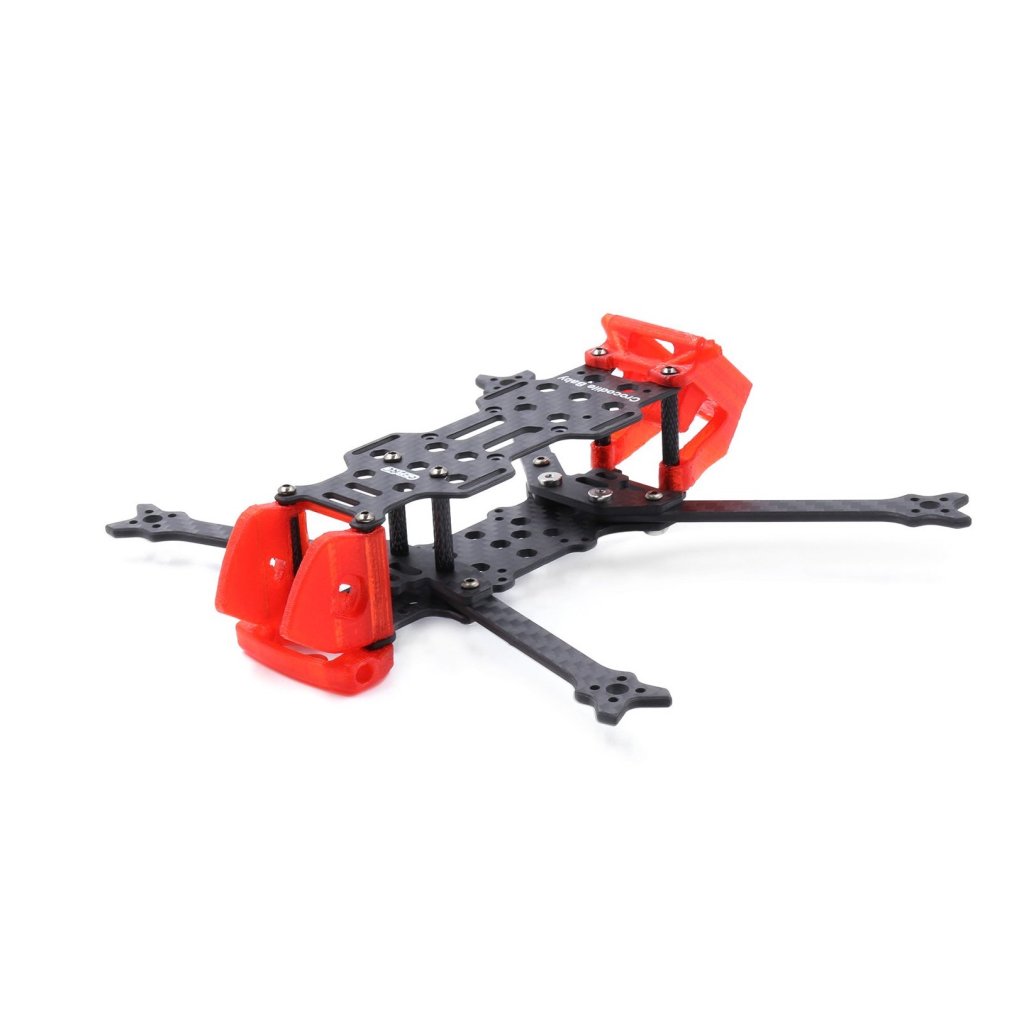

Crocodile Baby CB4 - rám dronu (GePRC)

Podrobný popis

Pre koho?

• Pre pilotov, ktorí si chcú postaviť menšieho long range drona
• Pre majiteľov drona Crocodile Baby na náhradné diely

Vlastnosti:

• Navrhnutý ako menší Long Range drone podporujúci max 4" vrtule so skvelým aerodynamickým profilom.
• Odľahčená pevná konštrukcia novšej verzie s 3D dielmi a 3K tkanými karbónovými plátmi.
• S odporúčanou 6S 3000mAh Long-range batériou upevnenou hore a odporúčanej stavbe sa dá lietať cez 25 minút.

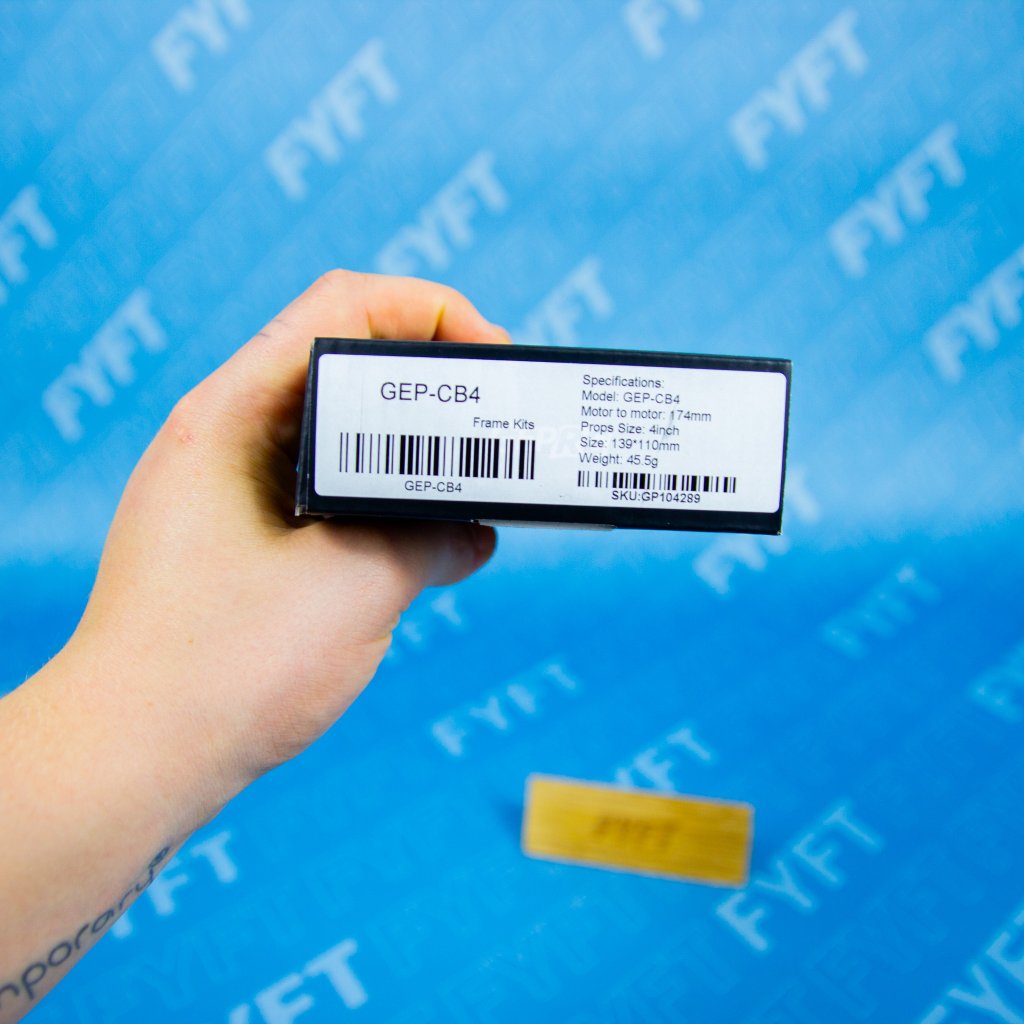

Specifications ：

• Brand:GEPRC
• Name:GEP-CB4
• Motor to Motor:174mm
• Camera position size:20mm
• Props Size:4inch
• Thickness of arms plate:2.5mm
• Thickness of Bottom plate:2mm
• Thickness of Top plate:1.5mm
• Flight control palice distance:20x20mmAnd26.5×26.5mm
• The palice position of motor:9mm
• Weight:45g

Recommended：

• Flight Controller:F4/F7
• Motory:1206/1404
• ESC:15A-30A

Feature:

• Full 3K carbon plates
• Specially designed for Micro Long Range Flight,Frame tilts forward,The wide battery's position
• Mount of camera using 3D printing structure,It can absorbing most of vibration and Reducing Jelly
• Support Various installation way of flight control's palice spacing
• Edge of the motor base is Specially Designed to protect the motor v case of crash
• GPS inštalácia pozície je reserved inside frame,

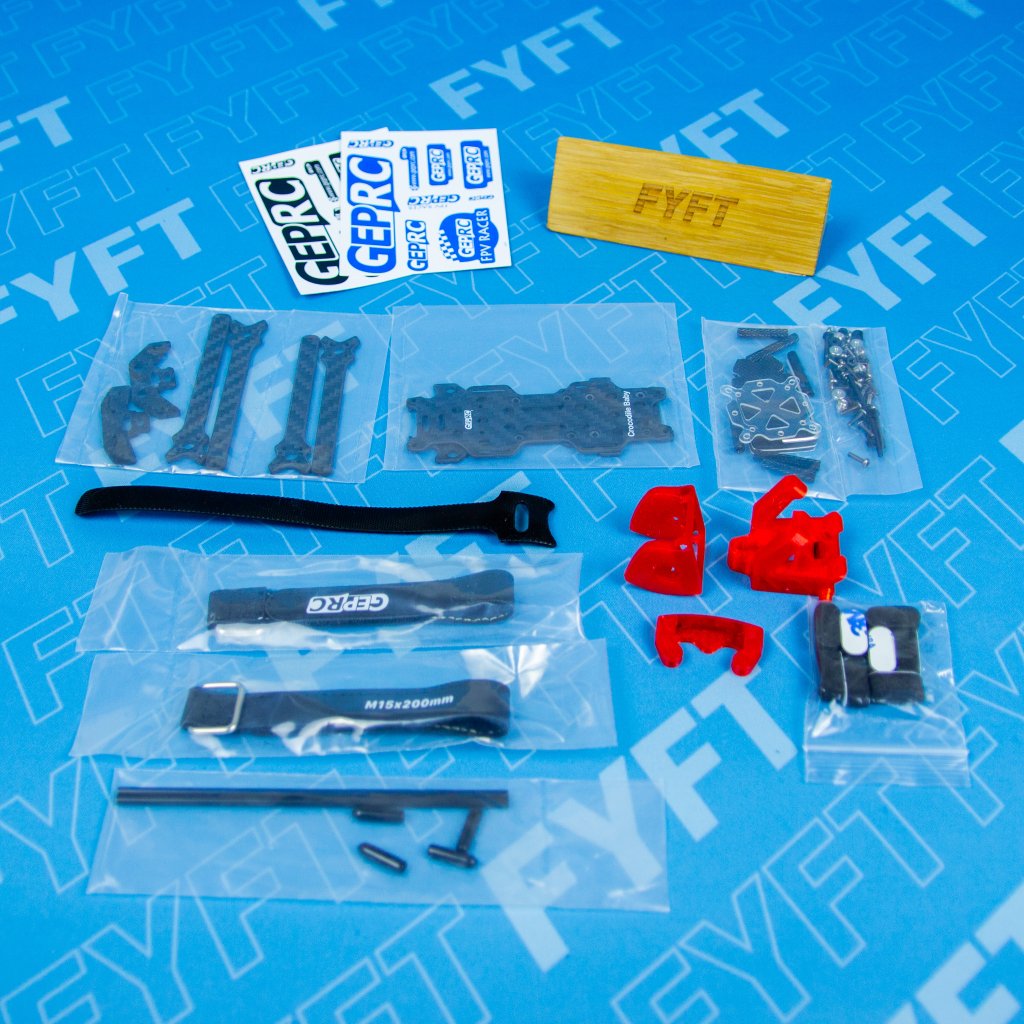

GEP-CB4 Include：

• 1 x 2.0mm Bottom plate
• 1 x 1.5mm Top plate
• 2 x 2.5mm Front plate
• 2 x 2.5mm Back Plate
• 1 x 2.0mm Front Splint
• 1 x 2.0mm Back Splint
• 4 x（M2*25) Aluminum posts
• 2 x（M2*20.5) Aluminum posts
• 6 x (M2*6) Round head screws
• 14 x（M2*8) Round head screws
• 4 x (M2*10) Round head screws
• 4 x (M2*4) Round head screws
• 8 x（M2) Push block nuts
• 8 x（M2*2) Plastic nuts
• 8 x（M2*18) Plastic screws
• 1 x 3D print crush barrier of camera
• 1 x Fixing part of Antenna Red
• 1 x Fixing part of TBS Antenna Red
• 2 x Batteries pad
• 8 x Landing shock absorption pad
• 2 x Protective Tube of Antenna
• 4 x Rubber Shock Pad
• 2 x (M15*180mm) Batteries strap
• 2 x (M15*180mm) Batteries strap
• 1 x (1.5mm) L shape wrench
• 1 x Plastic matching plate
